External-DNS Setup Guide

ExternalDNS synchronizes exposed Kubernetes Services and Ingresses with DNS providers.

What it does?

Inspired by Kubernetes DNS, Kubernetes’ cluster-internal DNS server, ExternalDNS makes Kubernetes resources discoverable via public DNS servers. Like KubeDNS, it retrieves a list of resources (Services, Ingresses, etc.) from the Kubernetes API to determine a desired list of DNS records. Unlike KubeDNS, however, it’s not a DNS server itself, but merely configures other DNS providers accordingly—e.g. AWS Route 53 or Google Cloud DNS.

Prerequisites (required for Support on TrueCharts Discord)

• Traefik
• Clusterissuer / Cert-manager deployed

Installation instructions

This guide will cover 3 scenarios, Cloudflare, Pi-hole and PowerDNS. For more external DNS record providers, see External-DNS Docs.

PowerDNS

These instructions taken from external-dns powerdns tutorial

Step 1

Set pdns provider with externaldns.provider: pdns

Step 2

Set externaldns.pdns.pdnsApiKey and externaldns.pdns.pdnsServerUrl.
The ApiKey must provide Zone Read/Write on all zones covered by domainFilters
The pdnsServerUrl is the full URL of the powerdns api endpoint, including the port (http://pdns-server-api.tld:9191/)

Cloudflare

These instructions taken from external-dns cloudflare tutorial

Step 1

Set the env. CF_API_TOKEN (preferred) or CF_API_EMAIL/CF_API_KEY.
When using API Token authentication, the token should be granted Zone Read, DNS Edit privileges, and access to All zones.

Step 2

• Enter preferences for Logs and DNS updates (Suggested >5m to prevent log spam)
• Set cloudflare as provider
• set sources ingress and service should covers everything.
• If you want to filter by multiple domains add your domainFilters
• Recommend using noop for registry and leaving the rest as default,
• You can add DNS Zone filters zoneidFilters as necessary as well

For more details of all option, see upstream docs of external-dns.

externaldns:
  logLevel: "info"
  logFormat: "text"
  interval: "60m"
  provider: "cloudflare"
  sources:
    - "service"
    - "ingress"
  domainFilters:
    - "${BASE_DOMAIN}"
  zoneidFilters: []
  cloudflareProxied: ""
  registry: "noop"
  policy: "upsert-only"  # would prevent ExternalDNS from deleting any records, omit to enable full synchronization

Step 3

Verify it works, check the logs for updates to DNS records

time="2025-03-02T17:19:28+01:00" level=info msg="Instantiating new Kubernetes client"
time="2025-03-02T17:19:28+01:00" level=info msg="Using inCluster-config based on serviceaccount-token"
time="2025-03-02T17:19:28+01:00" level=info msg="Created Kubernetes client https://172.17.0.1:443"
time="2025-03-02T17:19:31+01:00" level=info msg="Changing record." action=CREATE record=chart1.domain.tld ttl=1 type=A zone=f8d01e5d4a8927a99d2e2655edcc40fc
time="2025-03-02T17:19:32+01:00" level=info msg="Changing record." action=CREATE record=chart2.domain.tld ttl=1 type=A zone=f8d01e5d4a8927a99d2e2655edcc40fc
time="2025-03-02T17:19:33+01:00" level=info msg="Changing record." action=CREATE record=chart3.domain.tld ttl=1 type=A zone=f8d01e5d4a8927a99d2e2655edcc40fc

If this works, you’ll see DNS entries inside Cloudflare’s DNS page.

PiHole

Step 1

• Set pihole as provider
• set sources ingress and service should covers everything
• Recommend using noop for registry
• Set PiHole Server Address piholeServer and PiHole Server Password piholePassword
• Set piholeAPIVersion depending on which version of PiHole you have installed i.e. 5 or 6

Future deprecation

The option for version 5 of the PiHole api will be deprecated in a future External DNS release. More info: https://github.com/kubernetes-sigs/external-dns/blob/master/docs/tutorials/pihole.md

    externaldns:
      logLevel: "info"
      logFormat: "text"
      interval: "60m"
      provider: "pihole"
      sources:
        - "service"
        - "ingress"
      domainFilters: []
      zoneidFilters: []
      registry: "noop"
      policy: "upsert-only"  # would prevent ExternalDNS from deleting any records, omit to enable full synchronization
      piholeServer: "http://pihole.pihole.svc.cluster.local:8089"
      piholePassword: "DitIsSuperGeheim"
      piholeAPIVersion: "6"

Step 2

Verify logs from External-DNS to see if it connects and updates PiHole

... PiholeServer:http://pihole.ix-pihole.svc.cluster.local:9089 PiholePassword:****** PiholeTLSInsecureSkipVerify:false PluralCluster: PluralProvider:}"
2023-11-07 10:29:07.801555-05:00time="2023-11-07T10:29:07-05:00" level=info msg="Instantiating new Kubernetes client"
2023-11-07 10:29:07.801568-05:00time="2023-11-07T10:29:07-05:00" level=info msg="Using inCluster-config based on serviceaccount-token"
2023-11-07 10:29:07.801861-05:00time="2023-11-07T10:29:07-05:00" level=info msg="Created Kubernetes client https://172.17.0.1:443"
2023-11-07 10:29:08.008741-05:00time="2023-11-07T10:29:08-05:00" level=info msg="add firezone.DOMAIN.com IN A -> 192.168.88.105"
2023-11-07 10:29:10.048171-05:00time="2023-11-07T10:29:10-05:00" level=info msg="add scrutiny.DOMAIN.com IN A -> 192.168.88.105"

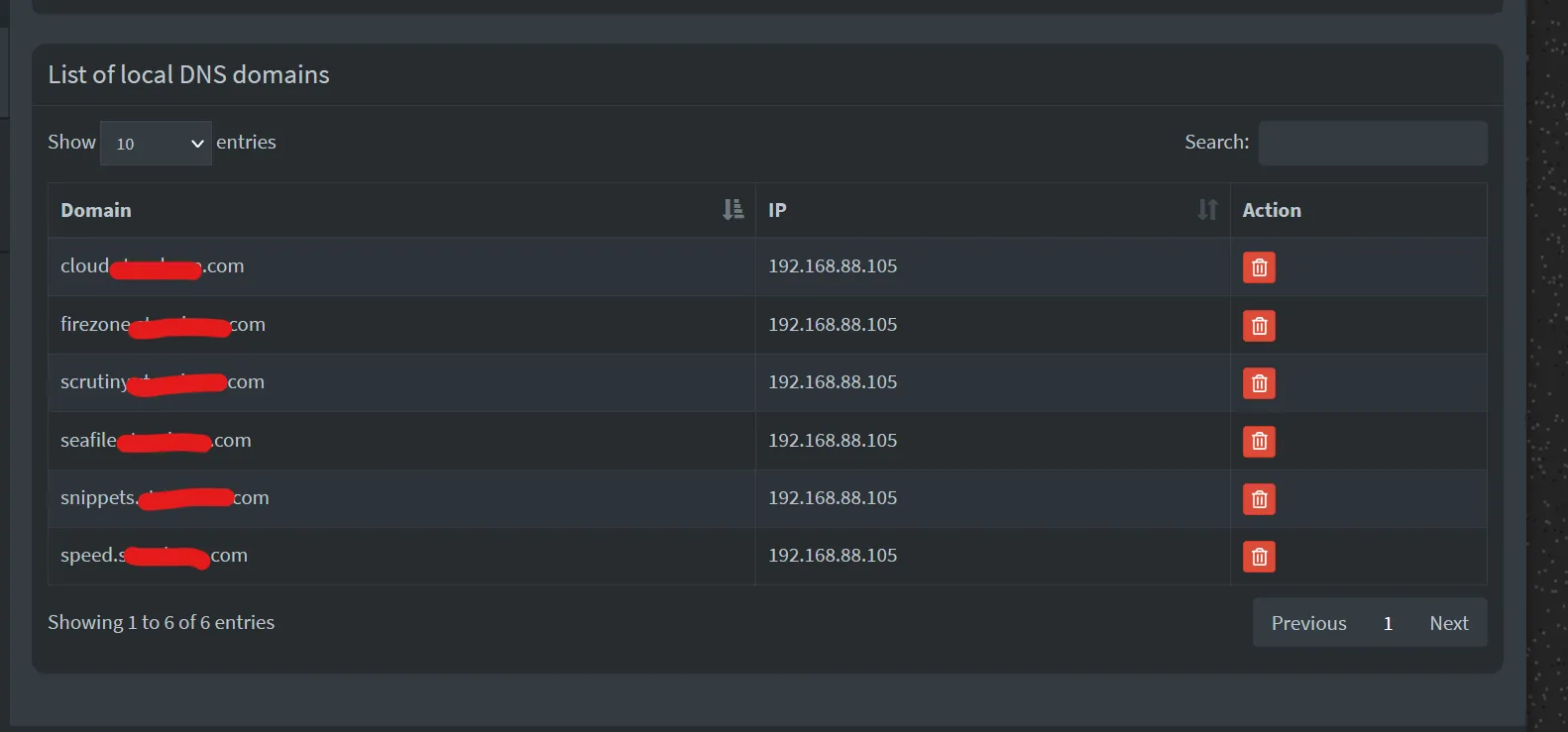

Check PiHole GUI for A records under Local DNS
